K Series 9000W Torre de Iluminação

Visão geral

K Series 9000W Torre de Iluminação é uma solução SWT da categoria Torres de Iluminação. Consulte a configuração técnica e solicite uma cotação para o seu projeto.

Descrição técnica original

k Series Metal Halide Lamp Lighting Tower Feature:

The SWT lighting tower is an economical lighting device which easy operate, compact, high performance, and affordable. This series of light tower use a number of advanced and innovative technologies:

• The control panel is simple with the common configuration: timer, emergency stop button, general alarm light, start switch, light pole control switch and lighting control switch. The power output adopts standard quick insertion output mode, and operation is simple and convenient;
• Four large-capacity batteries, the lighting system can be powered without the Generator set if power sufficiently.
• The Diesel Generator Set is equipped with Kubota Series engine with high quality control system.
• More humanized maintenance design, all maintenance points are unimpeded ;
• Metal Halide Lamp lighting system, energy conservation, environmental protection;
• High-standard mold forming process for all tanks;
• Internal wiring harness adopts fast plug-in connection mode;

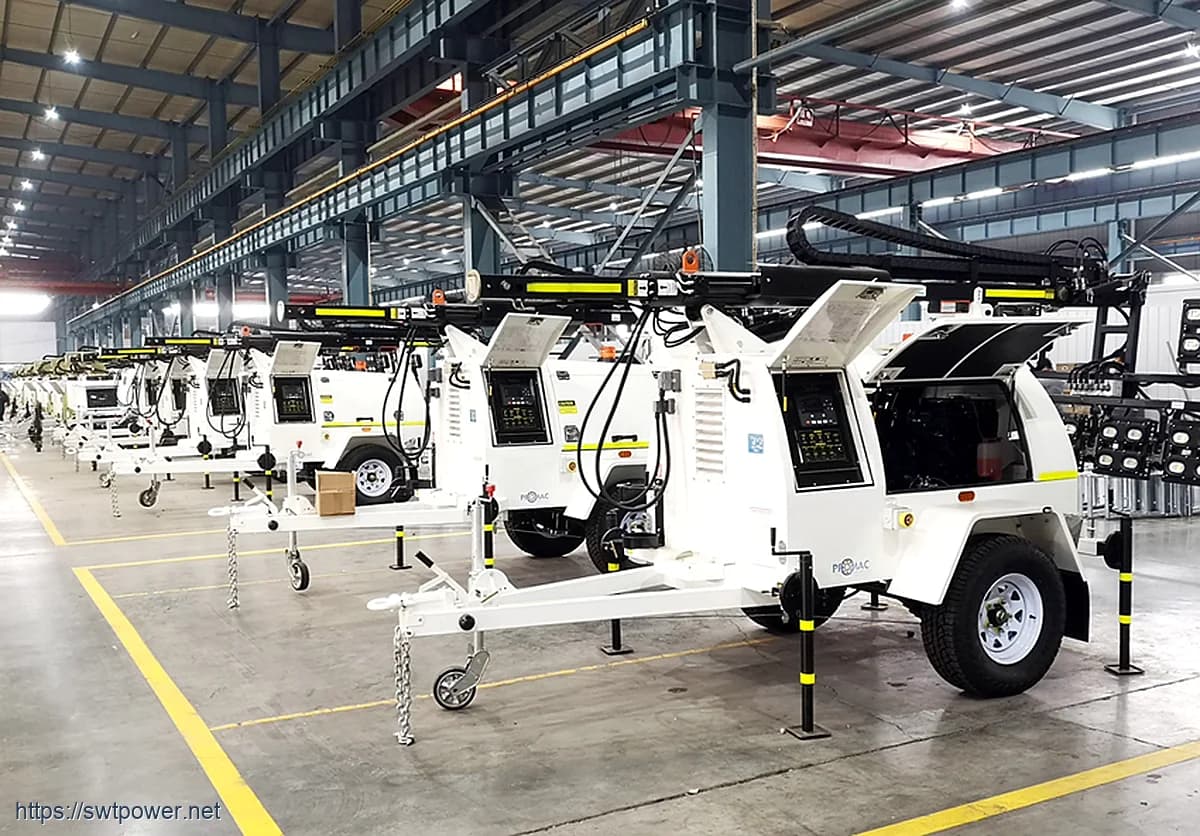

• Light tower adopts mobile trailer design. Short distance transportation can be directly operated by using tractor-assisted, convenient, fast and efficient;
• Using anti-rust material, and with high-temperature baking paint process surface, effectively reduce noise up to 15db or more;
• Using hydraulic power to drive lamp post , and making the unit easy to operate.
• Four supporting legs install light tower, which can make the installation and dismantling process easily.

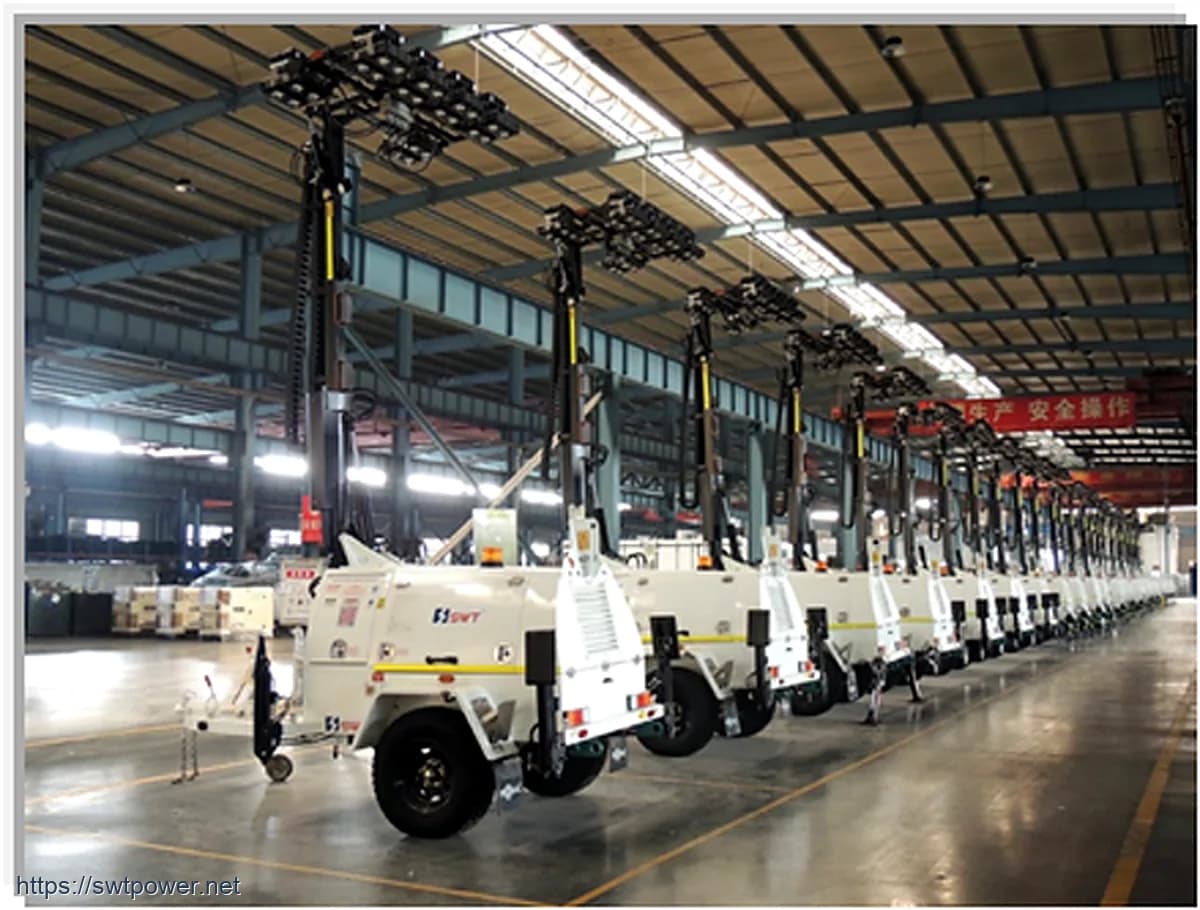

K Series Lighting Tower is one of the most powerful lighting towers, entire hydraulic system with electrical controlling. More safety and reliablity. The six shinning flood lights or twelve LED can illuminate and area of 300 meters radius. The extended height can be optionaly designed to 18m.
