600W Solar Torre de Iluminação
Torres de Iluminação

600W Solar Torre de Iluminação

600W Solar Torre de Iluminação é uma solução SWT da categoria Torres de Iluminação. Consulte a configuração técnica e solicite uma cotação para o seu projeto.

Modelo
2VS600
Marca
SWT

Solicite preco e configuracao

Forma de pagamento
L/C,T/T
Incoterm
FOB,CFR,CIF,EXW
Transporte
Ocean
Sistema de qualidade ISO 9001Teste de aceitacao em fabricaEntrega globalSuporte pos-venda

Descricao do produto

Visão geral

600W Solar Torre de Iluminação é uma solução SWT da categoria Torres de Iluminação. Consulte a configuração técnica e solicite uma cotação para o seu projeto.

Descrição técnica original

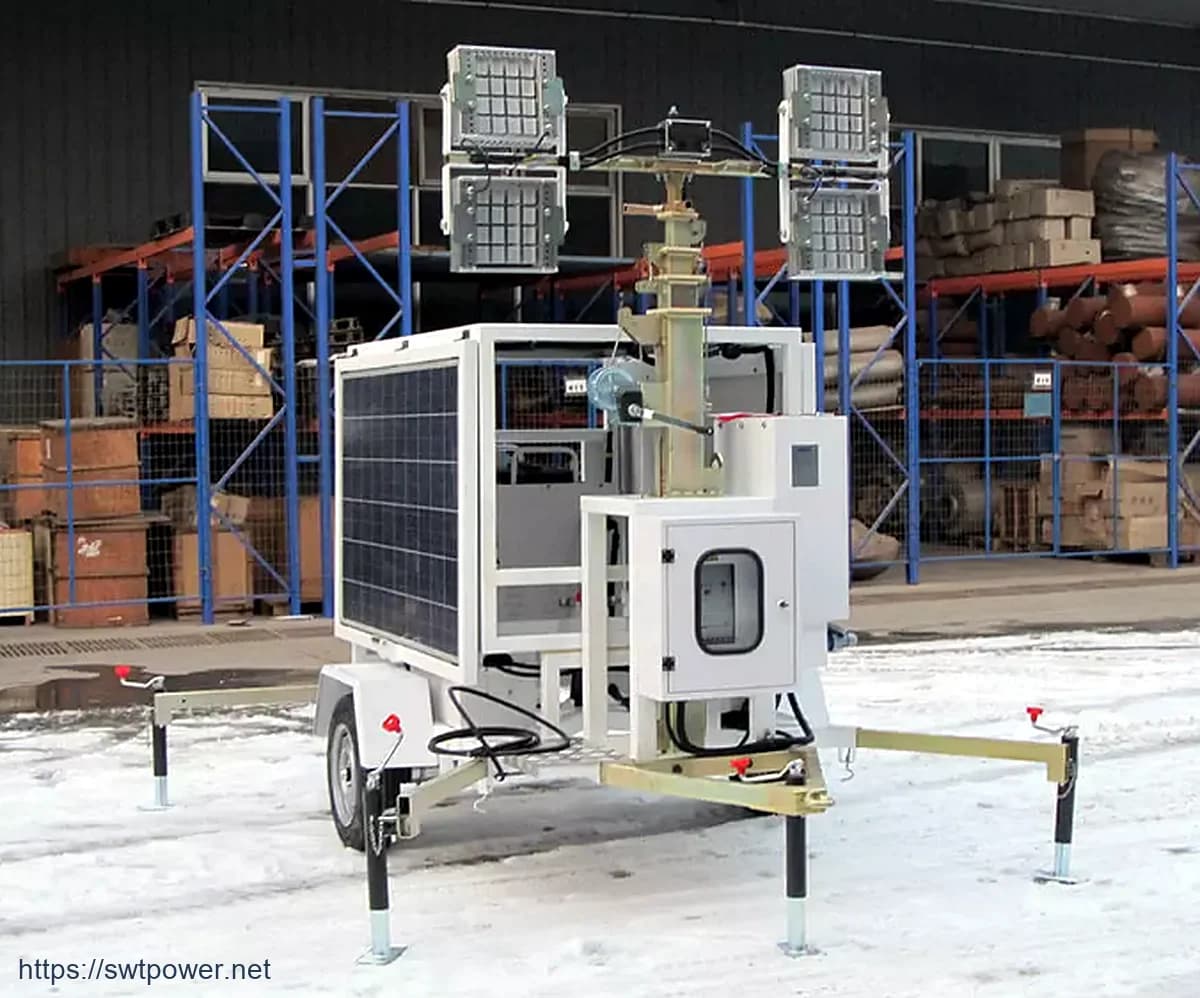

VS Series Solar Lighting Tower with LED

The Solar lighting tower is an economical lighting device which easy operate, compact, high performance, and affordable. This series of light tower use a number of advanced and innovative technologies:

  • The power output adopts standard quick insertion output mode, and operation is simple and convenient;
  • Four large-capacity batteries, the lighting system can be powered without the Generator set.
  • More humanized maintenance design, all maintenance points are unimpeded ;
  • IP66 LED Lamp lighting system, energy conservation, environmental protection;
  • Internal wiring harness adopts fast plug-in connection mode;
  • Light tower adopts mobile trailer design. Short distance transportation can be directly operated by using tractor-assisted, convenient, fast and efficient;
  • Using anti-rust material, and with high-temperature baking paint process surface
  • Four supporting legs install light tower, which can make the installation and dismantling process easily.

Especificacoes tecnicas

Lighting Tower Model4VS4002VS4002VS600
Type of LightsLEDLEDLED
IP GradeIP66IP66IP66
LED Luminous Efficiency110LM/W110LM/W130LM/W
Lights Life Time> 50000 hours> 50000 hours> 50000 hours
Light Power & Number4x100W2x200W2x300W
battery TypeFree Maintenance Lead-acid BatteriesFree Maintenance Lead-acid BatteriesFree Maintenance Lead-acid Batteries
Battery Capacity4x200Ah4x200Ah4x200Ah
System Voltage24VDC24VDC24VDC
Solar Module Power4x250W4x250W4x250W
Solar Module Adjustable Angle0-250° Manual0-250° Manual0-250° Manual
Solar Module Adjustment ControlManuallyManuallyManually
Mast ExtensionHydraulicHydraulicHydraulic
Size Length x Width x Height3400x1350x2160mm3400x1350x2160mm3400x1350x2160mm
Weight1050kg1100kg1150kg
Height (Mast Extended Fully)6.2m6.2m6.2m
Mast Extention TypeManuallyManuallyManually
Light Angle AdjustmentManuallyManuallyManually
Mast Section Number555
Trailer Suspension & AxleLeaf Spring & Single AxleLeaf Spring & Single AxleLeaf Spring & Single Axle
Brake SystemWithout BrakeWithout BrakeWithout Brake
Tow BarRetractable Guide WheelRetractable Guide WheelRetractable Guide Wheel
Supporting legs & Number4 Drawable bar with Manual Jacks4 Drawable bar with Manual Jacks4 Drawable bar with Manual Jacks
Wheel's Size & Tires14'' Rim with Regular Tires14'' Rim with Regular Tires14'' Rim with Regular Tires
Tow Adapter2" Ball Coupler2" Ball Coupler2" Ball Coupler
Tail LightsReflectorReflectorReflector
Shipment Number for 40HQ7 sets7 sets7 sets

Informações de fornecimento

ItemDetalhes
Produtividade7000 sets per year
TransporteOcean
Local de origemChina
Capacidade de fornecimento500 sets per month
CertificadoISO9001
Código HS85021100
Forma de pagamentoL/C,T/T
IncotermFOB,CFR,CIF,EXW
