Dual Fuel Usina de Energia 1MW-100MW

Visão geral

Dual Fuel Usina de Energia 1MW-100MW é uma solução SWT da categoria Usinas de Energia. Consulte a configuração técnica e solicite uma cotação para o seu projeto.

Descrição técnica original

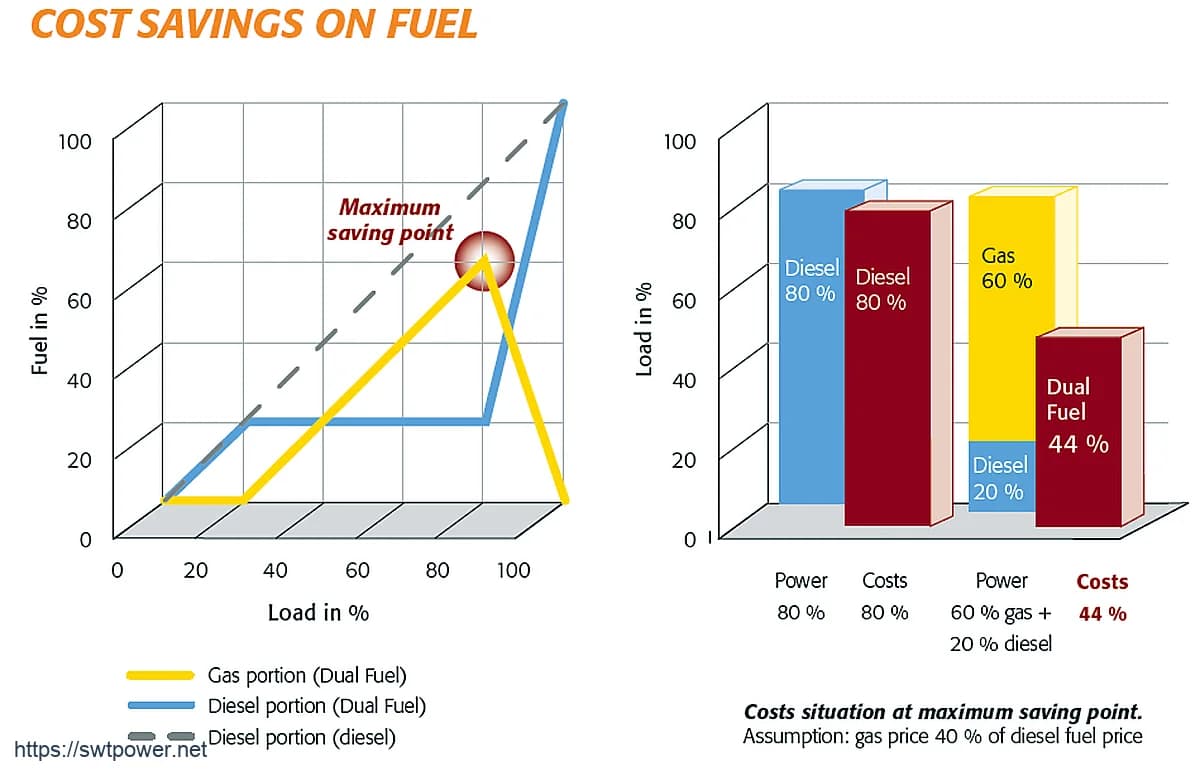

Dual Fuel Power Plant -Maximum 80% Natural Gas / 20% Diesel Fuel

SWT manufactures and supplys turn key Dual Fuel Power Plant within the range of 1 MW to 100 MW. Continuous, prime, standby with low/middle/high speed and 6.3/6.6/10/10.5/11kV voltage systems to meet all kind of requirement of customers. We design and manufacture complete advanced HV/MV/LV switchgear to solve complexity of parallel, synchronization and to ensure one window power solution. Containerized power plant for rapid installation and commissioning anywhere in the world with plug and play features. The advanced control system allows for automatic operation, initiated locally or remotely by a SCADA system. On-going engine data logging is an important element of the control system that defines the scheduling of onsite maintenance activities. With local environmental impact becoming an increasingly important consideration, the Diesel Power Module units are all configured for low emissions .

Standard Supply Scope:

• High Voltage Generators
• Synchronization Panel System
• HV/ Lv Distribution Panel
• Cooling Solution System
• Diesel Fuel Auto Supplying System

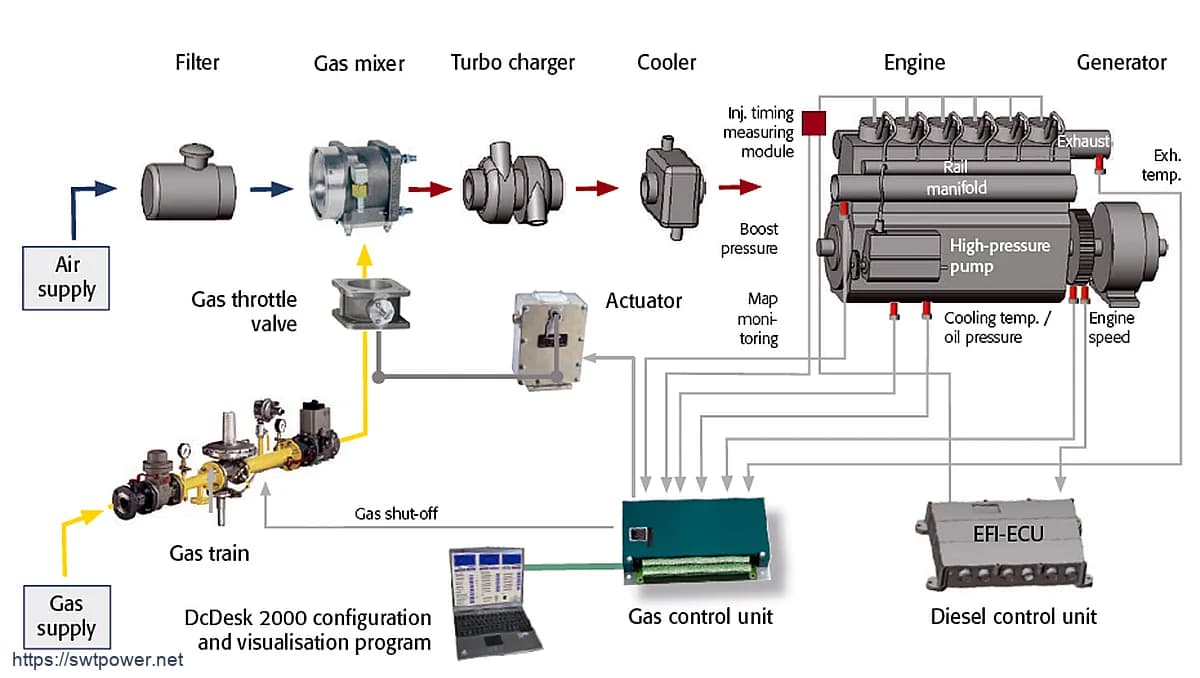

• Natural Gas Control System
• Optional Lube Oil Filling System
• Exhaust System
• Start System by 24VDC battery , or Air Compresser Starter
• Cable Layout and Wiring Connection
• SCADA Monitor System
• Optional Containerized Power Plant
• Site Installation & Testing, training
• Power Plant Room Layout Design
